The Great Request Robbery. An Empirical Study of Client-side Request Hijacking Vulnerabilities on the Web

Context

The root problem of CSRF (cross-site request forgery) is the server not being capable of distinguish unintentional from intentional requests, but CSRF is just one example of a more general issue of request hijacking in web application: CSRH (Client-Side Request Hijacking)

Most of the past work has been done solving confuse-deputy issue at the server side, while CSRF based on client input validation (URL manipulation) have received little attention so far

Approach

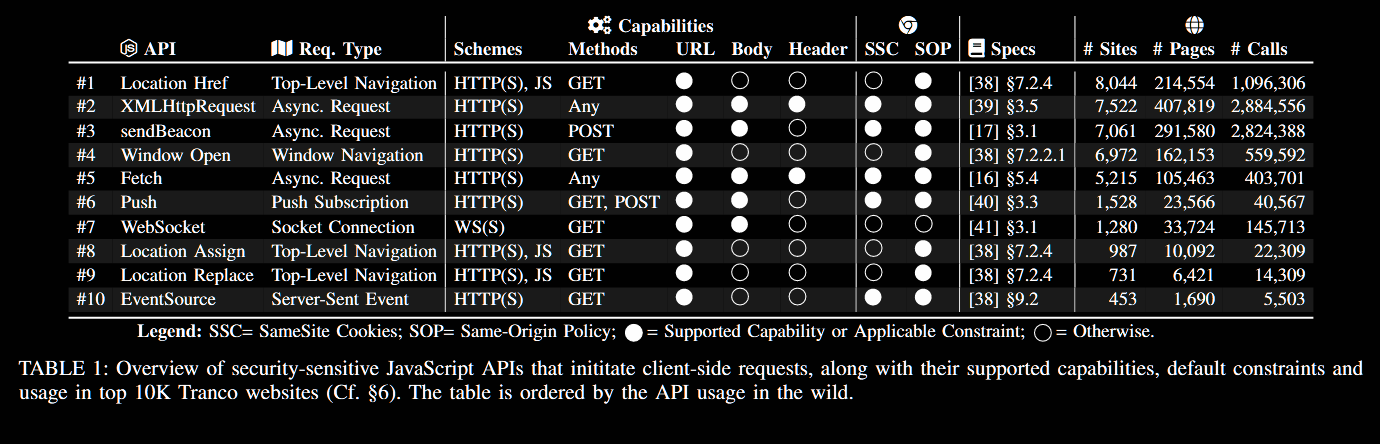

We examined JavaScript APIs capable of creating network requests: 10 APIs were found to be possible entry points for CSRH: location.href, XMLHttpRequest, sendBeacon, window.open, fetch, push, websocket, location.assign, location.replace, EventSource

A tool called Sheriff is proposed to detect CSRH (Client-Side Request Hijacking) vulnerabilities in the wild.

• it uses a combination of hybrid program analysis and in-browser DTA (dynamic taint analysis) tracking for the discovery of potentially-vulnerable data flows and dynamic analysis with API instrumentation for the automated vulnerability verification.
• it is composed of 4 modules:
  • data collection: gathers web resources and execute dynamic taint flows analysis
  • data modeling: create a HPG (Hybrid Property Graph) that classify websites
  • vulnerability analysis: traverses the graph following the propagation of un-validated data flows from input sources to functions involved in network requests
  • verification: confirms the potential forgeability of requests

We instantiate Sheriff against the Tranco top 10K websites to quantify the prevalence and impact of client-side request hijacking in the wild, processing over 32.4B lines of JavaScript code across 11.5M scripts and 339K webpages.

Sheriff was compared to the usage of CSP (Content Security Policy) and COOP (Cross-Origin Opener Policy)

Results

• 9.6% of Tranco top 10K websites are affected by CSRH
• among the various types of requests that can be hijacked, asynchronous requests are the most widespread (85%), with over 172K instances across 905 sites
• forged window.load are the second-most prevalent (8.2%), accounting for 16.5K flows in 365 sites
• location.href and XMLHttpRequest are the most used APIs for handling network requests
• the EventSource API is the less used
• 80% of the forgeable requests fields are fully controllable (the attacker can successfully manipulate all the query parameters)
• Sheriff identified an average of 23 request-sending sink functions and 65 sources per webpage
• CSP cannot mitigate over 41% of the information leakage and XSS exploitations of the request hijacking
• COOP (Cross-Origin Opener Policy) and COEP (Cross-Origin Embedder Policy) cannot mitigate over 93% and 94.7% of the total request hijacks

Limits

• the crawler does not create accounts or login: therefore the exploration of the websites is limited to the public pages. They claim that this limitation is in line with the state-of-the-art of security testing at scale (p.6)

---

References

• (Khodayari, Barber, et al., 2024)
